Optimizing HVAC Efficiency with Variable Refrigerant Flow Systems

Optimizing HVAC Efficiency with Variable Refrigerant Flow Systems

Are you looking for an efficient way to manage your building’s HVAC needs?

Variable Refrigerant Flow systems (VRF) might be the solution. VRF systems have revolutionized HVAC efficiency with their advanced technology, offering precise control over heating and cooling. But what exactly are they, and how do they work?

Variable Refrigerant Flow systems (VRF) are HVAC systems designed to provide enhanced energy efficiency and flexible operation. These systems can simultaneously heat and cool different zones within a building, adjusting refrigerant flow to meet specific needs. This adaptability makes Variable Refrigerant Flow systems (VRF) highly efficient and effective.

Components of VRF Systems

Understanding the components of Variable Refrigerant Flow systems (VRF) is essential for grasping how these systems function and why they are so effective. Let’s break down the key elements that make up a VRF system.

The Refrigerant Cycle Explained

At the heart of Variable Refrigerant Flow systems (VRF) is the refrigerant cycle, which involves the transfer of heat using refrigerant as the medium. The cycle consists of four main stages:

  1. Compression: The outdoor unit compresses the refrigerant, raising its temperature and pressure.
  2. Condensation: The hot, high-pressure refrigerant travels through the condenser coil in the outdoor unit, releasing heat and transforming it into a liquid.
  3. Expansion: The refrigerant then passes through an expansion valve, reducing its pressure and temperature.
  4. Evaporation: In the indoor unit, the low-pressure refrigerant absorbs heat from the indoor air, cooling the space before returning to the outdoor unit to start the cycle again.

Heat Pump vs. Heat Recovery Variable Refrigerant Flow systems (VRF)

Variable Refrigerant Flow systems (VRF) come in two main types: heat pump systems and heat recovery systems.

  • Heat Pump VRF Systems: These systems can either heat or cool all zones simultaneously but not both at the same time. They are ideal for buildings where heating or cooling is required consistently.
  • Heat Recovery Variable Refrigerant Flow Systems (VRF): These systems can simultaneously heat and cool different zones. This capability is beneficial for buildings with varying temperature needs in different areas. For example, one part of the building can be cooled while another part is heated.

Types of Variable Refrigerant Flow Systems (VRF)

Choosing the right VRF system depends on various factors, including the building’s design and the specific heating and cooling needs. Let’s explore the main types of Variable Refrigerant Flow systems (VRF).

Air-Cooled vs. Water-Cooled Systems

Air-cooled VRF systems and water-cooled Variable Refrigerant Flow systems (VRF) are the two primary categories based on the cooling medium used by the outdoor unit.

  • Air-Cooled Variable Refrigerant Flow Systems (VRF): These systems use ambient air to cool the refrigerant. They are easier to install and maintain since they don’t require a water source or cooling tower. Air-cooled systems are ideal for buildings without access to a reliable water supply.
  • Water-Cooled Variable Refrigerant Flow Systems (VRF): These systems use water to cool the refrigerant. They are more efficient in transferring heat and can operate in a wider range of temperatures. Water-cooled systems are suitable for large buildings or areas with high cooling demands.

Two-Pipe vs. Three-Pipe Systems

Another classification of VRF systems is based on the number of refrigerant pipes used:

  • Two-Pipe Systems: These systems have two pipes – one for the supply of refrigerant and one for the return. They are typically used in heat pump VRF systems, where all zones are either heated or cooled simultaneously.
  • Three-Pipe Systems: These systems have an additional pipe for refrigerant return, allowing for simultaneous heating and cooling in different zones. Three-pipe systems are often found in heat recovery Variable Refrigerant Flow systems (VRF), providing greater flexibility and energy efficiency.

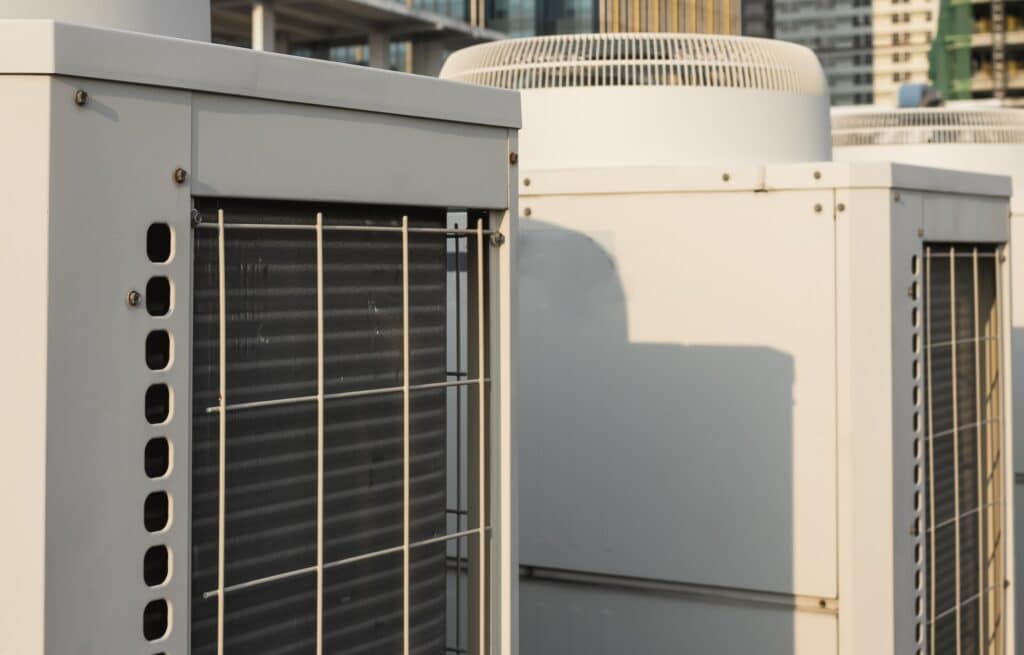

Variable Refrigerant Flow Systems.
Photo from iStock – Credit: Inna Kot

Benefits of VRF Systems

The adoption of Variable Refrigerant Flow systems (VRF) offers numerous benefits, making them an attractive option for both residential and commercial buildings. Let’s explore the key advantages of VRF systems.

Energy Efficiency and Cost Savings

One of the most significant benefits of Variable Refrigerant Flow systems (VRF) is their energy efficiency. These systems adjust the refrigerant flow according to the precise heating and cooling needs of each zone, minimizing energy wastage. The result is a reduction in energy consumption and, consequently, lower utility bills. In addition, VRF systems often qualify for energy efficiency rebates and incentives, further enhancing their cost-effectiveness.

Customizable Comfort and Zoning

VRF systems provide unparalleled comfort through precise zoning capabilities. Each indoor unit can be controlled independently, allowing occupants to set different temperatures for different areas.

This flexibility ensures optimal comfort for everyone, regardless of the building’s layout or the varying temperature preferences of its occupants. Furthermore, the ability to simultaneously heat and cool different zones makes VRF systems particularly advantageous for buildings with diverse needs.

Compact Design and Installation Flexibility

The compact design of Variable Refrigerant Flow systems (VRF) makes them ideal for buildings with limited space. The outdoor units are typically smaller and lighter than those of traditional HVAC systems, and the indoor units can be discreetly installed in ceilings, walls, or floors. This flexibility simplifies the installation process and reduces the need for extensive ductwork, making VRF systems suitable for both new constructions and retrofits.

Applications of VRF Systems

VRF systems are versatile and can be used in a variety of settings. Their flexibility, efficiency, and customizable comfort make them suitable for many applications.

Commercial Buildings

In commercial buildings, Variable Refrigerant Flow systems (VRF) are an excellent choice for maintaining comfortable indoor environments. Offices, hotels, and retail spaces benefit from the zoning capabilities and energy efficiency of VRF technology.

Each area within the building can have its own temperature setting, ensuring optimal comfort for employees, customers, and guests. Additionally, the compact design of VRF systems is ideal for urban buildings where space is at a premium.

Residential Applications

VRF systems are also increasingly popular in residential settings. Homeowners appreciate the system’s ability to provide consistent comfort throughout the house. Whether it’s a large multi-story home or a smaller single-family residence, VRF systems offer energy-efficient heating and cooling solutions. They are particularly useful in homes with varying temperature needs in different rooms or zones.

Retrofitting and New Construction

The flexibility of VRF systems makes them suitable for both retrofitting existing buildings and new constructions. In retrofit projects, the minimal need for ductwork and the compact size of VRF components simplify the installation process, reducing disruptions and costs. For new constructions, Variable Refrigerant Flow systems (VRF) offer modern, energy-efficient solutions that can be tailored to the building’s specific requirements.

Comparing VRF to Traditional HVAC Systems

When choosing an HVAC system, comparing Variable Refrigerant Flow systems (VRF) with traditional HVAC systems can provide valuable insights into which option best suits your needs.

Efficiency and Performance Differences

VRF systems are renowned for their energy efficiency. Unlike traditional HVAC systems that operate at a constant speed, VRF systems adjust the refrigerant flow to match the exact cooling or heating needs of each zone. This variable flow reduces energy wastage and enhances overall system efficiency. Traditional systems, in contrast, often cycle on and off, leading to energy spikes and reduced efficiency over time.

Initial Costs and Long-Term Savings

The initial installation cost of a VRF system can be higher than that of traditional HVAC systems. However, the long-term savings on energy bills and maintenance costs can offset the initial investment. VRF systems typically have lower operating costs due to their high efficiency and reduced wear and tear on components. Additionally, many VRF systems qualify for energy efficiency rebates and incentives, further enhancing their cost-effectiveness over time.

Installation and Maintenance

VRF systems offer more flexibility in installation compared to traditional HVAC systems. Their compact design and minimal need for ductwork make them suitable for buildings with space constraints or complex layouts. Maintenance is also simplified with VRF systems, as they are designed to be more reliable and require less frequent servicing. Traditional HVAC systems, with their extensive ductwork and larger components, can be more cumbersome and costly to maintain.

Variable Refrigerant Flow Systems.
Photo from iStock – Credit: Kunakorn Rassadornyindee

Installation and Maintenance of VRF Systems

Proper installation and regular maintenance are crucial for the efficient operation of Variable Refrigerant Flow systems (VRF). Let’s explore the essential steps for installation and the best practices for maintaining these systems.

Steps for Proper Installation

  1. Site Assessment: Begin with a thorough site assessment to determine the building’s specific heating and cooling needs. This includes analyzing the layout, size, and zones that require temperature control.
  2. System Design: Design the VRF system layout, considering the placement of indoor and outdoor units. The design should account for refrigerant pipe lengths, elevation differences, and the number of indoor units required.
  3. Installation of Outdoor Unit: Install the outdoor unit in a location with adequate ventilation and accessibility for maintenance. Ensure it is secured on a stable platform to minimize vibrations and noise.
  4. Refrigerant Piping: Connect the outdoor unit to the indoor units using refrigerant piping. Proper insulation and secure fittings are essential to prevent refrigerant leaks and maintain system efficiency.
  5. Installation of Indoor Units: Install the indoor units in the designated zones. These units can be mounted on walls, ceilings, or floors, depending on the building’s design and the specific needs of each zone.
  6. Electrical Wiring: Connect the electrical wiring according to the manufacturer’s specifications. Ensure all connections are secure and comply with local electrical codes.
  7. System Commissioning: After installation, commission the VRF system by conducting a series of tests to verify proper operation. This includes checking refrigerant levels, testing the control system, and ensuring all units are functioning correctly.

Routine Maintenance Practices

  1. Regular Inspections: Schedule regular inspections to check for any signs of wear and tear, refrigerant leaks, or other issues that could affect system performance.
  2. Filter Cleaning and Replacement: Clean or replace the air filters in the indoor units regularly to maintain good air quality and system efficiency.
  3. Refrigerant Level Check: Ensure the refrigerant levels are optimal. Low refrigerant levels can reduce efficiency and lead to system failure.
  4. Component Cleaning: Clean the condenser coils, evaporator coils, and other components to prevent dust and debris buildup, which can impede heat transfer and reduce efficiency.
  5. System Diagnostics: Use advanced diagnostic tools to monitor the system’s performance. This can help identify potential issues early and prevent costly repairs.

VRF System Controls and Integration

Advanced control systems and integration capabilities are key features of VRF systems, enhancing their functionality and user-friendliness. Let’s delve into the control options and integration possibilities for Variable Refrigerant Flow systems (VRF).

Advanced Control Systems

VRF systems come equipped with sophisticated control systems that allow users to manage their HVAC needs with precision and ease.

  1. Centralized Control: Many VRF systems offer centralized control options, enabling users to monitor and adjust settings for multiple indoor units from a single interface. This is especially useful in large buildings with numerous zones.
  2. Individual Zone Control: Each indoor unit in a VRF system can be controlled individually, allowing for customized temperature settings in different areas. This feature ensures optimal comfort and energy efficiency by heating or cooling only the occupied spaces.
  3. Smart Thermostats: Modern Variable Refrigerant Flow systems (VRF) are compatible with smart thermostats, which provide advanced features like remote access, programmable schedules, and integration with home automation systems. These thermostats enhance user convenience and can contribute to energy savings.
  4. Energy Management Systems: Some VRF systems can be integrated with energy management systems, providing detailed insights into energy consumption patterns. This data can help users optimize their HVAC usage and reduce energy costs.

Integration with Building Automation Systems

VRF systems can be seamlessly integrated with building automation systems (BAS), enhancing overall building management and efficiency.

  1. Interoperability: Many VRF systems are designed to work with popular building automation protocols such as BACnet and LonWorks. This compatibility allows for easy integration with existing BAS infrastructure.
  2. Centralized Monitoring and Control: Integrating VRF systems with a BAS enables centralized monitoring and control of all building systems, including HVAC, lighting, security, and more. This holistic approach simplifies building management and can lead to significant operational efficiencies.
  3. Automated Operations: Building automation systems can automate various aspects of HVAC operations, such as adjusting temperatures based on occupancy patterns or outdoor weather conditions. This automation enhances comfort while maximizing energy efficiency.
  4. Data Analytics: Integration with a BAS provides access to comprehensive data analytics, allowing building managers to track performance, identify inefficiencies, and implement corrective measures proactively.

Challenges and Considerations

While VRF systems offer numerous benefits, it is essential to consider potential challenges and factors before implementation. Understanding these aspects ensures a smooth installation and operation process.

Potential Drawbacks and Solutions

  1. Initial Cost: One of the primary drawbacks of Variable Refrigerant Flow systems (VRF) is the higher initial cost compared to traditional HVAC systems. This includes both the equipment and installation expenses.
    Solution: The long-term energy savings and lower maintenance costs can offset the initial investment. Additionally, many utility companies and government programs offer rebates and incentives for installing energy-efficient systems.
  2. Complex Installation: The installation process for VRF systems is more complex and requires skilled technicians familiar with the technology.
    Solution: Ensure that you hire certified and experienced HVAC contractors who have a proven track record with VRF systems. Proper training and certification can mitigate installation challenges.
  3. Maintenance Needs: While VRF systems require less frequent maintenance than traditional systems, they still need regular check-ups to ensure optimal performance.
    Solution: Establish a routine maintenance schedule with a professional HVAC service provider to address potential issues early and maintain system efficiency.
  4. Design Limitations: Certain building designs or older structures may pose challenges for VRF system installation, particularly concerning refrigerant piping lengths and routing.
    Solution: Conduct a thorough site assessment and work with HVAC professionals to design a system layout that accommodates the building’s unique characteristics.

Factors to Consider Before Implementation

  1. Building Size and Layout: Assess the building’s size, layout, and specific heating and cooling needs. Larger buildings with multiple zones benefit most from VRF systems, but proper planning is essential.
  2. Climate Conditions: Consider the local climate when choosing between air-cooled and water-cooled Variable Refrigerant Flow systems (VRF). Water-cooled systems may perform better in areas with extreme temperatures.
  3. Future Expansion: Plan for potential future expansions. VRF systems offer scalability, but it’s essential to account for possible growth during the initial design phase.
  4. Energy Efficiency Goals: Define your energy efficiency goals and evaluate how a VRF system aligns with these objectives. VRF technology is ideal for buildings aiming to reduce their carbon footprint and improve energy performance.



  1. Budget Constraints: Balance the initial investment with the long-term benefits. Consider financing options, rebates, and incentives that can alleviate upfront costs.

FAQ

  1. What is a VRF system?
    A VRF system is a type of HVAC system that adjusts the refrigerant flow to match the specific heating and cooling needs of different zones within a building.
  2. How does VRF technology work?
    VRF technology works by varying the flow of refrigerant to multiple indoor units, allowing each zone to have its own temperature setting for precise comfort and efficiency.
  3. What are the benefits of using VRF systems?
    VRF systems offer energy efficiency, customizable comfort, compact design, installation flexibility, and reduced environmental impact.
  4. How does VRF improve energy efficiency?
    VRF systems improve energy efficiency by minimizing energy wastage through precise control of refrigerant flow, leading to reduced power consumption and lower utility bills.
  5. Can VRF systems be used in residential homes?
    Yes, VRF systems are suitable for residential homes, offering efficient, customizable heating and cooling solutions.
